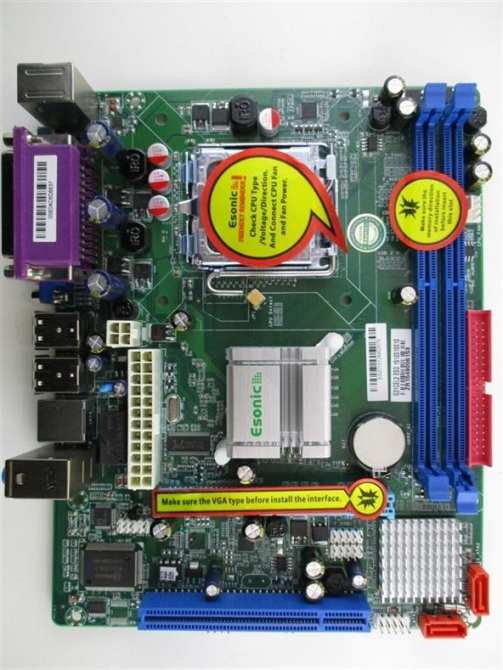

Mainboard Esonic H61

Esonic

H61

Các loại CPU Socket 1155

Chipset intel H61, Socket 1155

2 x DDR3 DIMM Bus 1066/1333/1600 MHZ

Integrated Graphics Processor

Realtek® ALC887 codec, High Definition Audio
2/4/5.1-channel

1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

4 x SATA 6Gb/s connectors

1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x parallel port
1 x serial port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD, @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Support for Q-Flash, Support for Smart Switch, Support for eXpress Install

Micro ATX Form Factor; 22.6cm x 17.4cm

Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main
